Image characteristics The screen resolution is high, capable of full-screen display of overpacket images. After pausing and restarting, the subsequent images can be fully displayed. The left and right image outputs on the screen can be set, and the images can be automatically saved
Mature technology The data adopts parallel transmission technology, and compared with other similar products, the speed of network transportation is faster 10-20 times
Fully functional Image rendering, storageTIP Insertion, high-density material alarm, user management, remote monitoring, customized functional modules according to customer requirements, and customized ports according to customer needs
Waterproof function Special treatment inside the passage ensures that a small amount of liquid spills from passengers are not affected, making them feel more at ease
Easy to learn and use It adopts a simple and user-friendly operation interface, allowing users to use the device easily
Massive storage The pictures are directly saved to the hard disk, and the storage quantity is greater than 100 There are tens of thousands of them, and they can be directly called and viewed
Energy conservation and environmental protection The machine can automatically sense objects. It only starts running when luggage is placed on it and remains stationary when there are no objects
One-click power off When shutting down, simply rotate the key once, and the device will automatically shut down safely, reducing equipment malfunctions
Environmentally friendly design The lead curtain is covered with a protective film to prevent guests' hands from coming into contact with lead and avoid lead contamination
Double-layer lead curtain design More effective prevention X Radiation leakage
High-definition acquisition systemThe product is designed with a new generation of high-definition acquisition solution, featuring high image clarity, fast acquisition speed, and excellent anti-interference ability. Before leaving the factory, the equipment has undergone long-term testing, demonstrating good performance and a low failure rate.
Brand-new integrated solutionBrand new F-stat The solution, without a computer hard disk system, is fully integrated on the chip, offering better stability and higher operational efficiency.
System self-detection functionWhen the system starts up or operates normally, the working status of the system is indicated through virtual indicator lights on the interface. In case of equipment failure, it can promptly and accurately prompt.
Energy-saving modeThe equipment automatically recognizes the packages and scans them for imaging, which is more energy-efficient and environmentally friendly
Automatic sound and light alarmThe equipment can automatically detect high-density substances, trigger alarm lights and buzzers to sound the alarm. At the same time, the position of high-density substances will be automatically marked on the display screen. The alarm sensitivity can be adjusted by the user and can identify tiny metals such as thumbtacks. Paper clips, etc
Full-screen display of the imageUsers can hide the function area interface on the display screen, show the packet passing image in full screen, and at the same time, the status bar retains necessary status indicator lights and other prompt information
Custom function keysUsers can set it according to their operational habits 3 A commonly used custom function key
Optimize the magnification functionContinuity provided for tiny items 100 The mouse wheel zoom function at this level, compared with the traditional one 16 Stage amplification function It has more powerful performance, a more delicate magnification effect, and also supports a magnifying glass, making it suitable for local magnification
High-speed chip-level hard diskOn traditional devices, ordinary large-capacity hard disks are mostly used. During normal operation, a large amount of data processing and storage are required, which can easily cause conflicts and lead to system crashes. However, by adopting a high-speed electronic chip hard disk design, the processing capacity and operational stability of the system can be significantly enhanced
Image data management systemDesigned to enable limited storage capacity to store more data and facilitate users' viewing of saved image data, this system saves images by date, has an image compression function, and comes with a built-in storage capacity detection function. When the capacity is insufficient, it will automatically delete the earliest saved old image data to ensure that it does not affect the storage of new images. Meanwhile, the system provides an online image browsing function Be able to quickly browse any saved picture
Save pictures in multiple formatsUsers can choose the format for saving pictures as needed BMP,JPEG,DATA And many other image formats.
Provide customized services for customersThe system can open up some interfaces, such as adjusting the display color of pictures according to user needs, or adding other practical functions as per reasonable customer requirements, such as customizing a higher-rate collection system (currently widely adopted by security inspection equipment) 0.22m/s Detection speed
Multilingual supportNow, three languages are supported: Chinese, English and Russian | Basic parameters |
|
| Overall dimensions |
2390(Long×720(Wide×1200(Highmm |
| Channel size |
500(Wide×300(Highmm |
| Conveyor belt speed |
0.22m/s(Adjustable |
| Rated load of conveyor belt |
150kg(Evenly distributed ResolutionAWG |
| Spatial resolution |
"Level"/Vertical: Diameter 1.0mm |
| Penetration resolution |
AWG38 |
| Penetrating power |
≧43mm Steel plate |
| Leakage dose rate |
< 0.10µGy/h |
| Direction of the ray beam |
Underlight style |
| Cooling／Work cycle |
Sealed oil cooling／100％ Pass rate> 750 |
| Image processing system |
|
| X Ray sensor |
L Shaped photodiode array detector16bit "Depth" |
| show in device |
High resolution 19 Inch liquid crystal display |

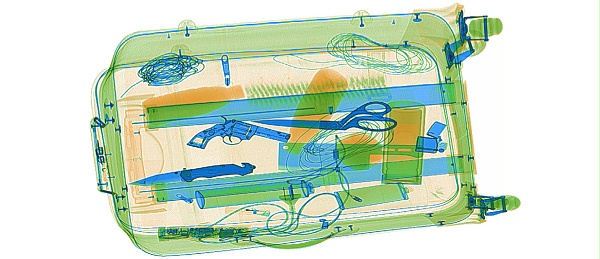

| Color image display |
24 True color display |
| Edge enhancement |
The edges of the object's outline are clearer |
| Super Enhancement |
The edge details of the image are clearer |
| Local enhancement |
Enhance image contrast |
| Enhanced display |
Enhance the penetration effect |
| Organic matter removal |
Organic substances are displayed in gray and inorganic substances in color |
| Inorganic matter removal |
Inorganic substances are displayed in gray and organic substances in color |
| High penetration display |
Enhance the contrast of the bright areas in the image to make the easily penetrated areas clearer |
| Low penetration display |
Enhance the contrast of the dark areas in the image to make the hard-to-penetrate areas clearer |
| Magnifying glass |
Local magnification function, dynamic real-time 100 Stepwise amplification |
| Brightening/Dim |
Increase the brightness of the image/The brightness image of the dimmed image |
| "Hui La"/Pull forward |
Before display 20 An image |
| Image restoration |
One-click image display restores to the initial state |
| Image storage |
High-speed electronic hard disk100 Storage of ten thousand images, continuous operation preservation |
| Usage environment |
|
| Working temperature／Humidity |
0℃～45℃／20%～95% (No condensation) |
| Storage temperature／Humidity |
-20℃～60℃／20%～95% (No condensation) |
| Working voltage |
220VAC(±10%) 50±3HZ |
| Power loss |
0.7KW(Maximum value |
| Noise level |
< 55dB |
| Detection object |
Parcels, mails, small luggage, suitcases, carrying bags and other small items |
| Adapt to the place |
Places with demands such as educational institutions, banks, tax authorities, courts, procuratorates, detention centers, tourist attractions, stadiums, supermarkets, hotels, etc |
